Bishamon EZ Loader

Bishamon EZ Loaders
Ergonomic palletizing of products coming off an assembly or packaging line make quick work for
Bishamon EZ Loaders. Pallet positioners save your back and make the job easier. Bishamon EZ Loaders offer
a unique pneumatic solution to difficult loading and unloading applications.

Bishamon EZ Loaders

Standard EZ Loader Stainless EZ Loader Model

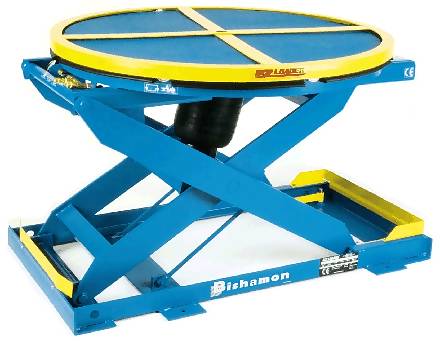

EZ LOADER PALLET POSITIONERS
The new EZ Loader now handles loads from a minimum self leveling weight of 250 lbs. up to a maximum self-leveling weight
of 3,500 lbs. with a maximum load weight of 4,000 lbs. To make it even better, we added a three position adjustability knob that
allows adjustment of the collapsed capacity without changing the air pressure! EZ Loaders are designed to eliminate worker
bending by automatically raising and lowering pallets during loading or unloading without the use of mechanical springs,
motors or hydraulics. EZ Loaders also allow easy pallet rotation for near-side loading so the worker does not have to reach or strain.
As the load weight changes, the EZ loader automatically adjusts keeping the top of the load at a convenient working height.
The patented pneumatic system found only on the EZ Loader has proven to be the choice of industry professionals worldwide.

Model	Travel	Capacity	Self Leveling Capacity Range	Lowered Ht.	Raised Ht.	Ship Wt.	Price 1 - 3 units	Price 4 or more
EZ Loader	20"	4,000#	250 - 3,500#	10.5"	30.5"	500#	$ 2,477	*Call*
EZ Loader-E	20"	4,000#	250 - 3,500#	10.5"	30.5"	500#	$ 4214	*Call*
EZ Loader-SS	20"	4,000#	250 - 3,500#	10.5"	30.5"	500#	$10,438.40	*Call*
Standard Finish of EZ Loaders: EZ Loader = standard powder coated finish EZ Loader-E = FDA compliant powder coated finish with stainless steel solid round top EZ Loader-SS = 304 Stainless steel with an electro-polished finish
Accessories
	Bellows Skirting with frame (Part #EZ-ABS)						$ 696.00
	Semi Live Portability Kit includes handle and 2 casters (Part #EZ-SLP)						$ 580.00
Other Optional Accessories
								Part Number	Price
	Rotator ring brake to prevent rotation							EZ-BRK	$ 142.00
	Cart Portability Kit - (2) swivel casters and (2) rigid casters (7" add to Lowered Ht.)							EZ-CART	$ 770.00
	Solid 43" diameter round top							EZ-SRT	$ 139.00
	Oversize rectangular rotating platform (44" x 44")							EZ-4444	$ 450.00
	Oversize rectangular rotating platform (44" x 48")							EZ-4448	$ 450.00
	Oversize rectangular rotating platform (48" x 48")							EZ-4848	$ 450.00
	Solid 43" diameter round top with 90 degree detents							EZ-SRT-DNT	$ 450.00
	Oversize rectangular rotating platform (44" x 44")							EZ-4444-DNT	$ 658.00
	Oversize rectangular rotating platform (44" x 48")							EZ-4448-DNT	$ 658.00
	Oversize rectangular rotating platform (48" x 48")							EZ-4848-DNT	$ 658.00

• Self leveling design automatically keeps the top of the load at a convenient working height to help
eliminate bending and improve productivity
• Integral rotator ring helps eliminate reaching and stretching
• Captive air operation eliminates cumbersome mechanical springs and gives more controlled
(dampened) movement of the platform

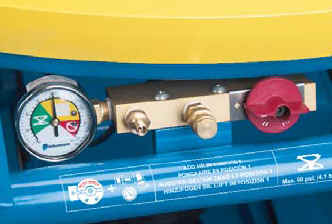

• A three position EZ Adjust knob allows adjustment of the collapsed capacity without changing air pressure
• Secured ball bearing center pivot of the 43” diameter rotator ring provides smooth, even rotation
• Pressure relief valve prevents excess pressure build-up
• Surfaces are phosphatized and powder coated with a high quality polyester for a lasting, durable finish
• Rollers are entrapped in the base frame and platform for added stability
• A safety finger guard eliminates pinch points with the rotator spoke and bearings
• Integral maintenance blocks
• EZ Loaders arrive at your facility fully assembled - just add air!
• Easily transported with a fork truck or via optional portability packages
• The EZ Loader is CE marked under the Machinery Directive (2006/42/EC)
