Gravity Roller Conveyor
Medium Duty Conveyor: 1.9" Roller
1.9" diameter roller conveyor is used in permanent installations to
carry
medium weight packages. Majority of products will convey with
minimum
amount of pitch.

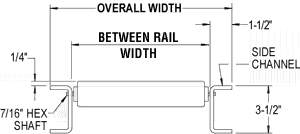

| Standard Specifications: Frame: 3 1/2" deep x 1 1/2" flange x 12 ga. painted formed steel channel with bolt in cross members. Butt Couplings: Bolt on type for bolting sections together. Rollers: Rollers set High. 1.9" diameter x 16 ga. unplated steel tubing. Rolled over ends provide firm bearing seat and rounded ends. Bearings are labyrinth sealed and grease packed. Axles: 7/16" hex shaft, spring loaded. |
|
| Capacity Chart: Frame: 500#/ft on 5'-0" centers 105#/ft on 10'-0" centers Rollers: 250# per roller |
 |
| Medium Duty Conveyor - 1.9" diameter | |||||||||
| Overall Width | Between Rail Dim. | Roller Centers |
5'-0" Long |
Wt. ea. |
Price |
10'-0" Long |
Wt ea. |
Price |
|
| 18" | 15" | 2 1/4" | 19SR-14-2 1/4 -5' | 95.0 | 19SR-12-2 1/4 -10' | 187.0 | |||
| 3" | 19SR-14-3 -5' | 81.0 | 19SR-12-3 -10' | 157.0 | |||||
| 4 1/2" | 19SR-14-4 1/2 -5' | 63.0 | 19SR-12-4 1/2 -10' | 123.0 | |||||
| 6" | 19SR-14-6 -5' | 55.0 | 19SR-12-6 -10' | 105.0 | |||||
| 24" | 21" | 2 1/4" | 19SR-20-2 1/4 -5' | 117.0 | 19SR-21-2 1/4 -10' | 236.0 | |||
| 3" | 19SR-20-3 -5' | 98.0 | 19SR-21-3 -10' | 195.0 | |||||
| 4 1/2" | 19SR-20-4 1/2 -5' | 75.0 | 19SR-21-4 1/2 -10' | 151.0 | |||||
| 6" | 19SR-20-6 -5' | 65.0 | 19SR-21-6 -10' | 128.0 | |||||
| 30" | 27" | 2 1/4" | 19SR-26-2 1/4 -5' | 148.0 | 19SR-27-2 1/4 -10' | 293.0 | |||
| 3" | 19SR-26-3 -5' | 123.0 | 19SR-27-3 -10' | 240.0 | |||||
| 4 1/2" | 19SR-26-4 1/2 -5' | 91.0 | 19SR-27-4 1/2 -10' | 180.0 | |||||
| 6" | 19SR-26-6 -5' | 75.0 | 19SR-27-6 -10' | 149.0 | |||||
| Gravity Roller Curves:
|
||||||||
| Overall Width | Between Rail Dim. | Inside Radius | 90 degree Straight Roller | Weight ea. | Price | 90 degree Tapered Roller | Weight ea. | Price |
| 18" | 15" | 32 1/2" | 19SRC-14-90S | 105.0 | 19SRC-14-90T | 119.0 | ||
| 24" | 21" | 32 1/2" | 19SRC-20-90S | 131.0 | 19SRC-20-90T | 156.0 | ||
| 30"* | 27" | 32 1/2" | 19SRC-26-90D | 177.0 | 19SRC-26-90T | 210.0 | ||
| * Denotes split roller curve. | ||||||||
|
|
||||||||
Select Conveyor Stands
|
||||||||
