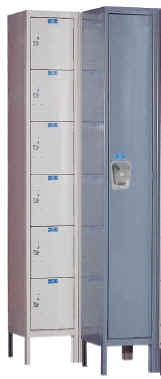

Steel Lockers - Maintenance Free Quiet Lockers
These high quality lockers provide both Quiet and Trouble Free operation. The secret to maintenance free lockers is in the recessed handle with no moving parts. The locker locking bar simply extends through the opening on the locker door in order to accept the padlock for securing the locker. No moving parts, no maintenance, no Problem! All Hallowell® Maintenance Free Quiet Lockers are available in Two popular colors for immediate shipment.  Lockers can ship:

 knock-down in 48 hours  or  fully-assembled within 5 working days
Pricing below.............................!!

Maintenance Free
Steel Lockers

Benefits of Maintenance free lockers:
1 - Recessed Handle
2 - No moving parts
3 - Quiet Operation
  • Stainless steel recessed handle with single-point maintenance-free quiet latching for single, double and triple tier models
  • Single point thru-the-door friction catch door pull/padlock hasp at six tier models
  • 16 ga. plain doors (18 ga. for six tier)
  • 18 ga. full-height door stiffener welded to inner door face at hinge side for maximum strength at single, double and triple tier models
  • 24 ga. solid body parts
  • Hat shelf at single tier
  • Standard with 6” legs (optional without legs...specify “no legs” when ordering)
  • Coat rods are available for single tier at a nominal cost




Order From these Two Standard Stock Colors - In Stock



   Maintenance
Free Lockers 		Unassembled Lockers
Ships in 48 hours
Maintenance Free
Steel Lockers		 Unassembled
  1-Wide Units		  Unassembled
  3-Wide Units
Opening
W x D x H		 Overall
W x D x H		 No. of
Openings		 Model Unit Wt Price per
Unit		 No. of
Openings		 Model Unit Wt Price per
Unit

 Single Tier -  72"high Opening - 78" High Overall with 6" Legs
12 x 12 x 72 12 x 12 x 78 1 UY1228-1 59.0 111.48 1 UY3228-1 165.0 311.43
12 x 15 x 72 12 x 15 x 78 1 UY1258-1 63.0 116.74 1 UY3258-1 174.0 321.44
12 x 18 x 72 12 x 18 x 78 1 UY1288-1 66.0 124.58 1 UY3288-1 180.0 339.19
15 x 18 x 72 15 x 18 x 78 1 UY1588-1 73.0 136.39 1 UY3588-1 201.0 374.64
18 x 18 x72 18 x 18 x78 1 UY1888-1 79.0 142.86 1 UY3888-1 219.0 391.75
 Double Tier -  36"high Opening - 78" High Overall with 6" Legs
12 x 12 x 36 12 x 12 x 78 2 UY1228-2 64.0 127.91 2 UY3228-2 180.0 360.71
12 x 15 x 36 12 x 15 x 78 2 UY1258-2 67.0 134.35 2 UY3258-2 186.0 374.27
12 x 18 x 36 12 x 18 x 78 2 UY1288-2 70.0 140.79 2 UY3288-2 192.0 387.84
15 x 18 x 36 15 x 18 x 78 2 UY1588-2 78.0 150.44 2 UY3588-2 216.0 416.83
18 x 18 x36 18 x 18 x78 2 UY1888-2 86.0 175.76 2 UY3888-2 240.0 481.96
  Triple Tier -  24" High Openings - 78" High Overall with 6" Legs
12 x 12 x 24 12 x 12 x 78 3 UY1228-3 61.0 148.78 3 UY3228-3 171.0 423.30
12 x 15 x 24 12 x 15 x 78 3 UY1258-3 65.0 153.28 3 UY3258-3 180.0 431.14
12 x 18 x 24 12 x 18 x 78 3 UY1288-3 69.0 163.35 3 UY3288-3 189.0 455.51

Maintenance
Free Lockers
Assembled Lockers
Ships in 5 days
Maintenance Free
Steel Lockers		 Assembled
 1-Wide Units		 Assembled
 3-Wide Units
Opening
W x D x H		 Overall
W x D x H		 No. of
Openings		 Model Unit Wt Price per
Unit		 No. of
Openings		 Model Unit Wt Price per
Unit
 Single Tier - 72"high Opening - 78" High Overall with 6" Legs
12 x 12 x 72 12 x 12 x 78 1 UY1228-1A 59.0 131.48 1 UY3228-1A 165.0 371.43
12 x 15 x 72 12 x 15 x 78 1 UY1258-1A 63.0 136.74 1 UY3258-1A 174.0 381.44
12 x 18 x 72 12 x 18 x 78 1 UY1288-1A 66.0 144.58 1 UY3288-1A 180.0 399.19
15 x 18 x 72 15 x 18 x 78 1 UY1588-1A 73.0 156.39 1 UY3588-1A 201.0 434.64
18 x 18 x72 18 x 18 x78 1 UY1888-1A 79.0 162.86 1 UY3888-1A 219.0 451.75
 Double Tier - 36"high Opening - 78" High Overall with 6" Legs
12 x 12 x 36 12 x 12 x 78 2 UY1228-2A 64.0 147.91 2 UY3228-2A 180.0 420.71
12 x 15 x 36 12 x 15 x 78 2 UY1258-2A 67.0 154.35 2 UY3258-2A 186.0 434.27
12 x 18 x 36 12 x 18 x 78 2 UY1288-2A 70.0 160.79 2 UY3288-2A 192.0 447.84
15 x 18 x 36 15 x 18 x 78 2 UY1588-2A 78.0 170.44 2 UY3588-2A 216.0 476.83
18 x 18 x36 18 x 18 x78 2 UY1888-2A 86.0 195.76 2 UY3888-2A 240.0 541.96
  Triple Tier - 24" High Openings - 78" High Overall with 6" Legs
12 x 12 x 24 12 x 12 x 78 3 UY1228-3A 61.0 168.78 3 UY3228-3A 171.0 483.30
12 x 15 x 24 12 x 15 x 78 3 UY1258-3A 65.0 173.28 3 UY3258-3A 180.0 491.14
12 x 18 x 24 12 x 18 x 78 3 UY1288-3A 69.0 183.35 3 UY3288-3A 189.0 515.51
