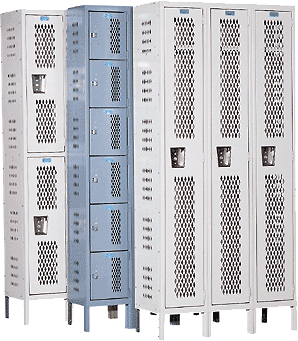

 Ventilated Steel Lockers
Ventilated Lockers offer better Air Flow and Content Visibility.
Great as athletic lockers and more. Store more items securely, with more air flow.
All Hallowell® Heavy Duty Ventilated Lockers are available in Two popular colors for immediate shipment.  Lockers can ship:

 knock-down in 48 hours or  fully-assembled within 5 working days


Heavy Duty Ventilated
Steel Lockers

  • Stainless Steel recessed handle with gravity latching for single and double tier models
  • Single point thru-the-door friction catch door pull/padlock hasp at six tier models
  • 14 ga. diamond perforated doors
  • 16 ga. diamond perforated sides
  • 16 ga. solid top, bottom and intermediate shelves
  • 18 ga. solid back
  • Hat shelf at single tier
  • Standard with 6” legs (optional without legs...specify “no legs” when ordering)
  • Coat rods are available for single tier at a nominal cost




Order From these Two Standard Stock Colors - In Stock



Unassembled Units Unassembled Lockers
Ships in 48 hours
Opening
W x D x H		 Overall
W x D x H		 No. of
Openings		 Model Unit Wt Price per
Unit		 Model Unit Wt Price per
Unit
Single Tier   1 Wide 3 Wide
12 x 12 x 72 12 x 12 x 78 1 U1228-1HDV 80.0 144.62 U3228-1HDV 210.0 379.20
12 x 18 x 72 12 x 18 x 78 1 U1288-1HDV 97.0 169.15 U3288-1HDV 246.0 430.63
15 x18 x 72 15 x18 x 78 1 U1588-1HDV 107.0 178.27 U3588-1HDV 276.0 460.78
18 x 18 x 72 18 x 18 x 78 1 U1888-1HDV 120.0 184.39 U3888-1HDV 315.0 502.87
Double Tier
12 x 12 x 36 12 x 12 x 78 2 U1228-2HDV 82.0 168.48 U3228-2HDV 216.0 355.26
12 x 18 x 36 12 x 18 x 78 2 U1288-2HDV 99.0 191.32 U3288-2HDV 252.0 500.64
15 x 18 x 36 15 x18 x 78 2 U1588-2HDV 109.0 199.04 U3588-2HDV 282.0 525.04
18 x 18 x 36 18 x 18 x 78 2 U1888-2HDV 123.0 208.87 U3888-2HDV 324.0 556.06
Six Tier - Box Lockers
12 X 12 X 12 12 X 12 X 78 6 U1228-6HDV 94.0 191.00 U3228-6HDV 252.0 518.36
12 X 18 X 12 12  X 18 X 78 6 U1288-6HDV 117.0 217.66 U3288-6HDV 306.0 583.83



Assembled Units Assembled Lockers
Ships in 5 days
Opening
W x D x H		 Overall
W x D x H		 No. of
Openings		 Model Unit Wt Price per
Unit		 Model Unit Wt Price per
Unit
Single Tier   1 Wide 3 Wide
12 x 12 x 72 12 x 12 x 78 1 U1228-1HDV-A 80.0 168.62 U3228-1HDV-A 210.0 451.20
12 x 18 x 72 12 x 18 x 78 1 U1288-1HDV-A 97.0 193.15 U3288-1HDV-A 246.0 502.63
15 x18 x 72 15 x18 x 78 1 U1588-1HDV-A 107.0 202.27 U3588-1HDV-A 276.0 532.78
18 x 18 x 72 18 x 18 x 78 1 U1888-1HDV-A 120.0 208.39 U3888-1HDV-A 315.0 574.87
Double Tier
12 x 12 x 36 12 x 12 x 78 2 U1228-2HDV-A 82.0 192.48 U3228-2HDV-A 216.0 419.26
12 x 18 x 36 12 x 18 x 78 2 U1288-2HDV-A 99.0 215.32 U3288-2HDV-A 252.0 572.64
15 x18 x 36 15 x18 x 78 2 U1588-2HDV-A 109.0 223.04 U3588-2HDV-A 282.0 597.04
18 x 18 x 36 18 x 18 x 78 2 U1888-2HDV-A 123.0 232.87 U3888-2HDV-A 324.0 628.00
Six Tier - Box Lockers
12 X 12 X 12 12 X 12 X 78 6 U1228-6HDV-A 94.0 215.00 U3228-6HDV-A 252.0 590.36
12 X 18 X 12 12  X 18 X 78 6 U1288-6HDV-A 117.0 241.66 U3288-6HDV-A 306.0 655.83

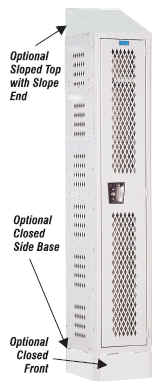

Closed Front Bases   Closed Side Bases
Description Part No. Price   Description Part No. Price
12" wide KCFB12 3.76   12" deep KCSB12 5.59
15" wide KCFB15 4.10   15" deep KCSB15 5.66
18" wide KCFB18 4.58   18" deep KCSB18 6.18
 End Panels   Sloped Tops
Description Part No. Price   Description Part No. Price
12" deep KMP1272 24.79   12" deep KIST1212 7.55
15" deep KMP1572 28.71   15" deep KIST1215 7.83
18" deep KMP1872 33.92   18" deep KIST1218 8.70
    Sloped Tops End Enclosures
        Description Part No. Price
        12" deep KISE12 4.14
        15" deep KISE15 4.58
        18" deep KISE18 4.87
